This is a unique product in the automatic concrete mixer market. The generation self-loading mixer truck upgrades the bucket down function which truly realize the multi-purpose loading function with one machine.

At the same time, the brake caliper increase the braking performance .The equipment is kept clean, and the water tank is enlarged to increase the output...

10m3 16m3 20m3 concrete mixer

Flexibility and autonomy. Equipped with an innovative computerized production system capable of producing high quality concrete. Two-way driving in front and rear, the drum can be rotated by 270° at the same time and the bucket down function. The consistency, repeatability and quality of the concrete batch are the four major advantages we have provided. This is our The unique features of the mobile self-feeding mixer.The extremely compact, flexible and reasonably priced vehicle can unload 3m³ of concrete at one time. It can work continuously for 24 hours a day with no stop, and the daily output (8 hours) is 144 m.

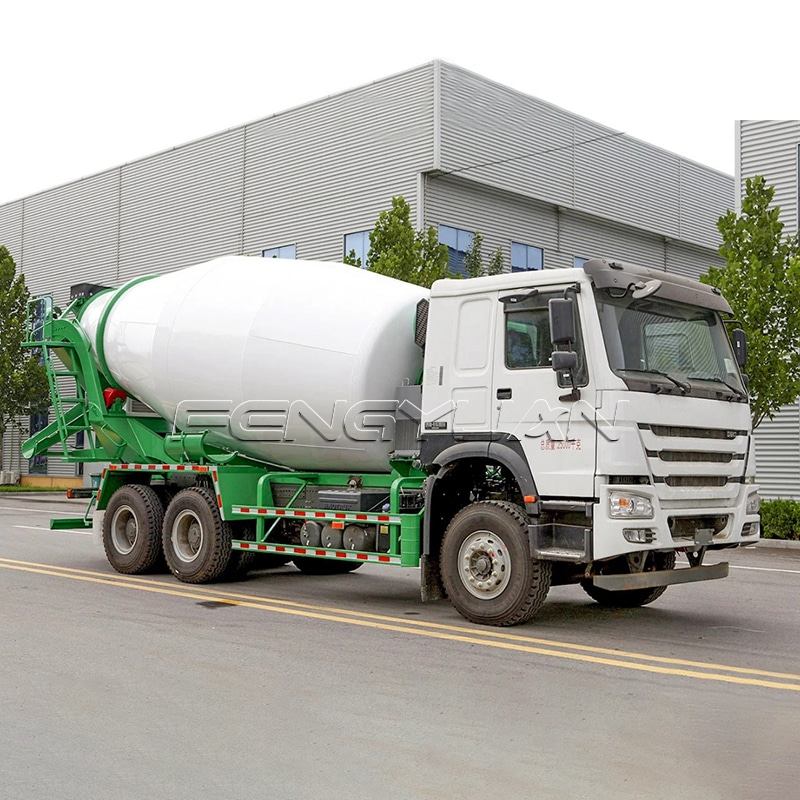

Automatic Loading Concrete Mixer

Product Parameters

Overall Dimensions	9780mm2496mm3990mm(LWH)
Tare Weight	13950kg
Payload	35000kg
Front Overhang	1500mm
Rear Overhang	2880mm
Wheelbase	4000mm+1400mm
Track (F/R)	2022mm/1830mm
Chassis Brand	SINOTRUK HOWO
Chassis Model	ZZ1257N4048W, driving type 6x4
Cab	HW76, left hand drive, air-conditioner, one sleeper
Engine	SINOTRUK WD615.47, 371hp(273KW), Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Transmission	HW19710, No. of speeds: 10 forward 2 reverse
Steering	German ZF8098, turning system pressure 18MPa
Rear Axle	HC16 tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires	Rim 9.0-22.5; tire 12R22.5, 10 units; Spare wheel carrier: with one spare wheel
Brakes	Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake

Engineering Building Concrete Cement Mixer

High Load capacity Concrete Cement Mixer

Hot Tags : 20m3 concrete mixer Automatic Loading Concrete Mixer Engineering Building Concrete Cement Mixer High Load capacity Concrete Cement Mixer 10m3 concrete mixer 16m3 concrete mixer
