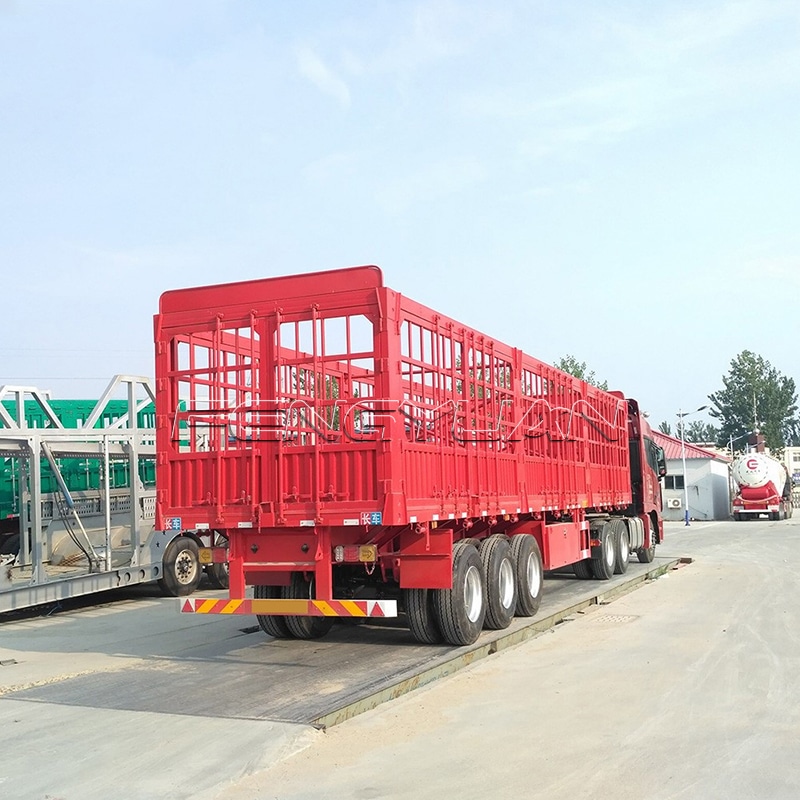

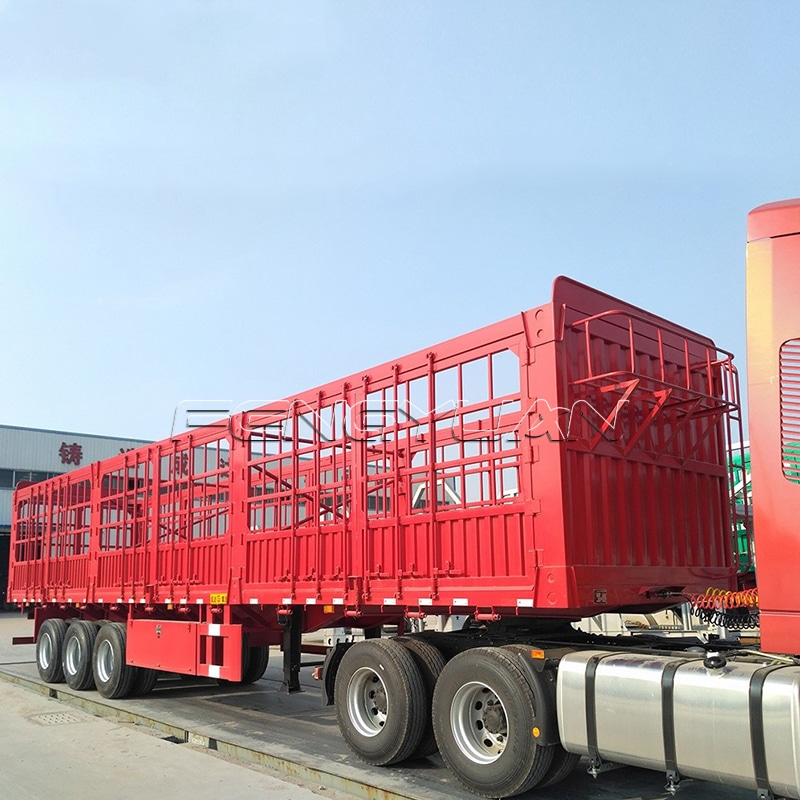

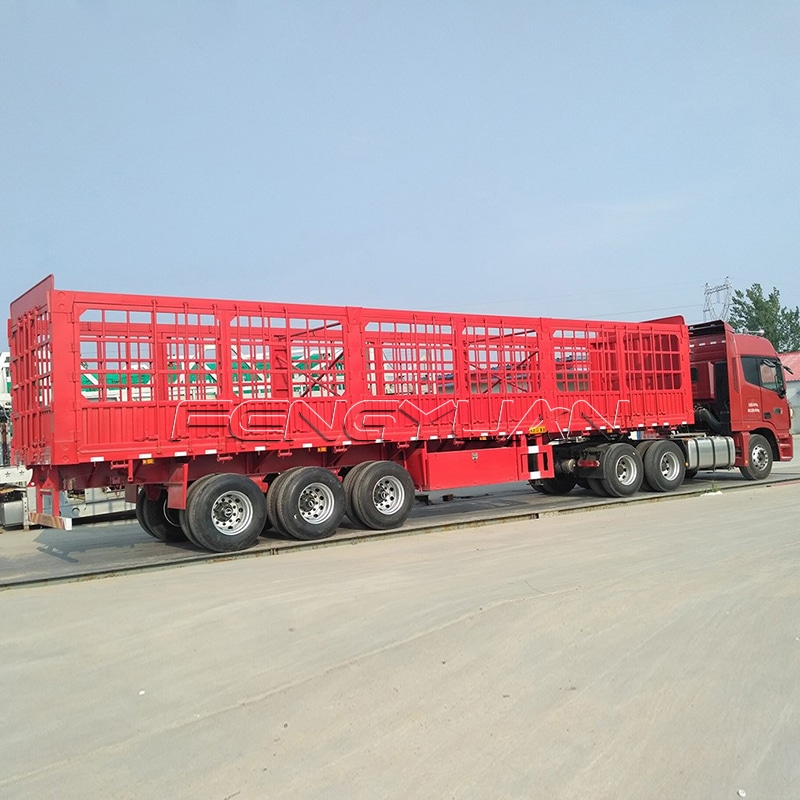

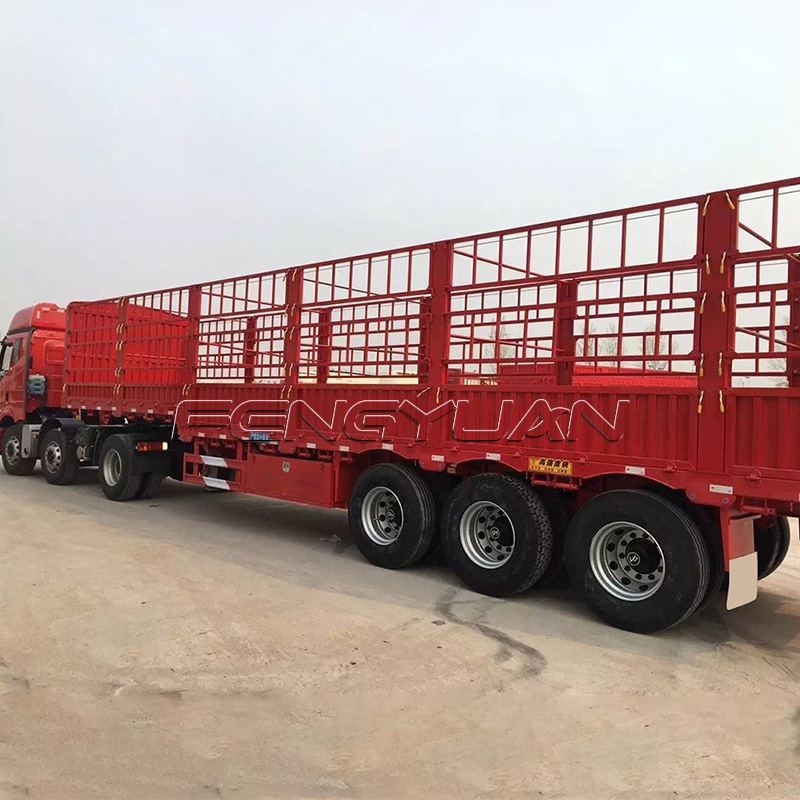

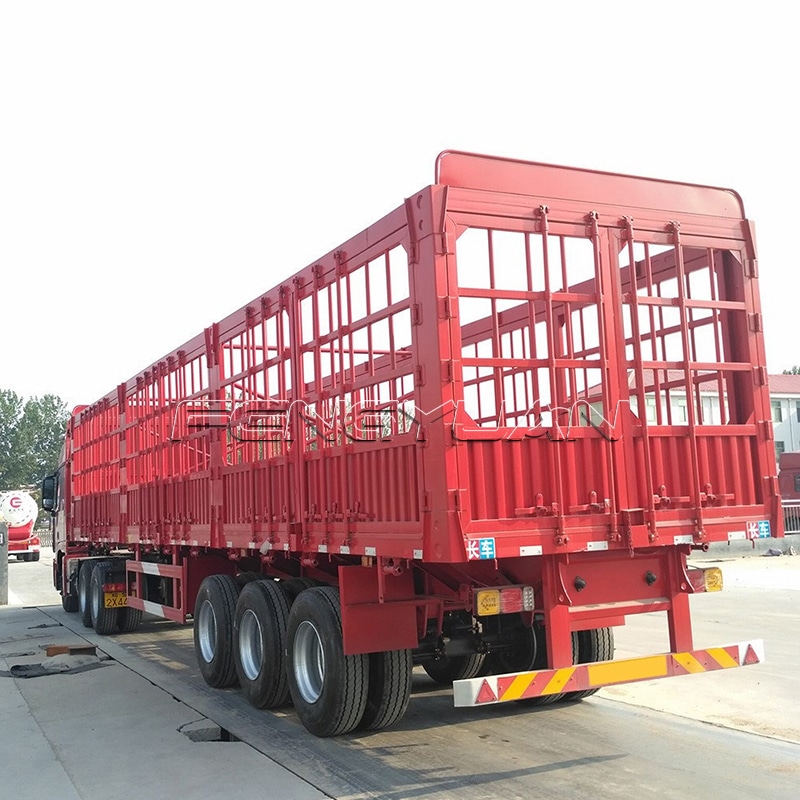

3 Axle Cargo Goods Transport Fence Semi Trailer

Tri Axle fence semi trailer
Goods Transport Fence Semi Trailer
cargo transport fence semi trailer
livestock Transport Fence Semi Trailer
fence semi trailer
3 axle fence semi trailer

3 Axle Cargo Goods Transport Fence Semi Trailer



     3 Axle fence semi trailer can be used to transport many kinds of objects, from boxes to bulk cargo.  It is widely used by transportation companies in the logistics industry.

  • Order(MOQ) :

    1 set
  • Payment :

    50% advance payment, balance before delivery
  • Product Origin :

    Bozhou, Anhui, China
  • Color :

    Customizable
  • Shipping Port :

    Qingdao, China
  • Lead Time :

    20-30 days
  • Weight :

    about 7.5 ton

Features of Fence Cargo Truck Trailer:



1). The animal transport trailer model and fence structure design process are combined with the user's cargo category, reasonable design, to fully reduce the weight of the carriage under load conditions, the structure is simple and applicable, and sidewall semi trailer is convenient to disassemble, reduce investment costs for users, and create more profit value.

semi trailer 3 axle



2). The fence trailer frame adopts a space frame structure formed by welding longitudinal beams and integral through cross beams. It can balance the strength, rigidity, and toughness of the frame, with strong bearing capacity and no deformation.

bed trailer



3). Animal transport trailer adopts a new type of suspension system with high strength and strong impact resistance. The load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground and effectively reduce tire wear during frequent bumps.



equipment semi trailer

bulk cargo transportation fence semi trailer
Main Beam Material: Q345B Carbon Steel.
Beam height: 500 mm. Upper plate: 14 mm,
Bottom Plate: 16 mm,
Middle: 6/8 mm
Dimension (L*W*H) 13000*2500 (standard fence height 500-600mm)
Tare Weight 7.5 t
Payload 60 Ton
Axle 3 axles (12 ton)
Suspension Heavy Duty Mechanical Suspension
Leaf Spring 10 layers Leaf spring
King Pin 2'' / 3.5'' Bolt-in King Pin
Landing Gear 28 ton landing gear
Wheel Rim 9.0-22.5 wheel rim 13 pieces
Tire 12R22.5 tire with one spare tire.  13 pieces
Braking System Dual-line brake system
Color According to customers' needs
Electrical system 1. Voltage:24V, LED lights
2. Tail light, brake light & reflector, side lamp etc.
3.Receotacle:7 ways (7 wire harness)
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories One standard tool box



semi truck trailer
