Container skeleton semi trailer widely used, which is mainly used for long-haul freight transport, eg: 20ft or 40ft container.
It uses the high strength international steel material, the whole trailer has small deadweight, and ensures its anti distortion,earthquake resistance,anti bumping ability,and meets the different road bearing capacity.
Order(MOQ) :
1 setPayment :
50% advance payment, balance before deliveryProduct Origin :
Bozhou, Anhui, ChinaColor :
CustomizableShipping Port :
Qingdao, ChinaLead Time :
20-30 daysWeight :
about 6.5 tonFeatures for Truck Semi Trailers:
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc. Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers / High Quality Body/BPW, FUWA or Certificated Chinese Axles / ABS brake system / JOST or Chinese brand parking leg and king pin / Air and Mechanical Suspension / Strengthen the Chassis Instructure.
40 ft trailer
2. The capacity is for 60 tons , we can manufacture it according to your needs.
3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension or mechanical (leaf spring suspension)
40ft container trailer
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .
40ft semi trailer

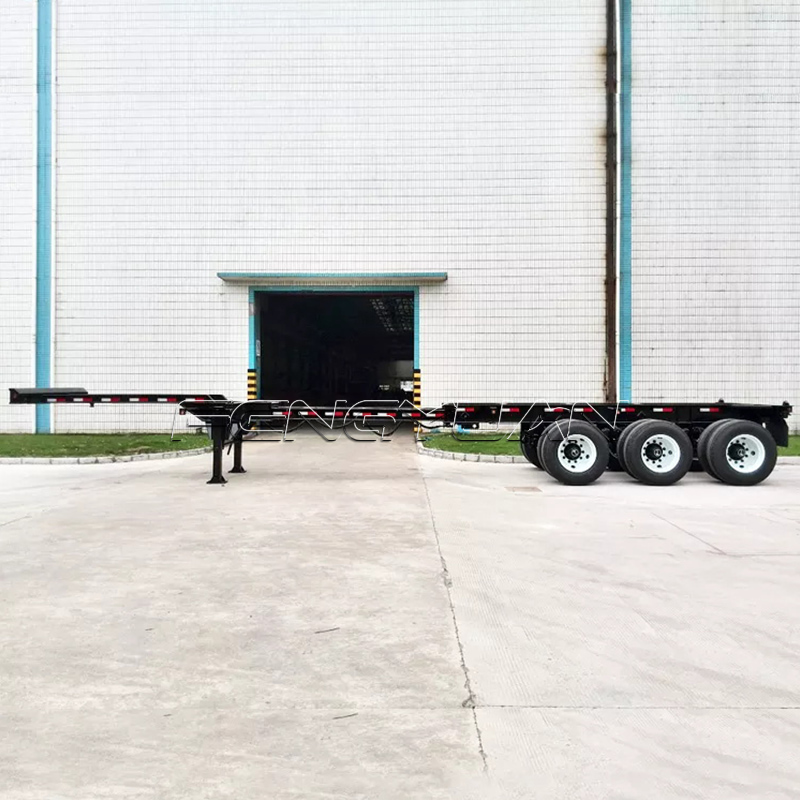

40ft 3 axle skeleton semi trailer | |
Tare Weight | 6500 KG |
Overall Length | 12400mm |
Overall Width | 2480mm |
Payload | 60 Ton |
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. |
Axle | 3 axles (12 ton) |
Suspension | Heavy Duty Mechanical Suspension |
Leaf Spring | 10 layers Leaf spring |
King Pin | 2'' / 3.5'' Bolt-in King Pin |
Landing Gear | Two-speed, manual operating, heavy duty landing gear |
Wheel Rim | 9.0-22.5 wheel rim 13 pieces |
Tire | 12R22.5 tire with one spare tire. 13 pieces |
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
40 ft container trailer
