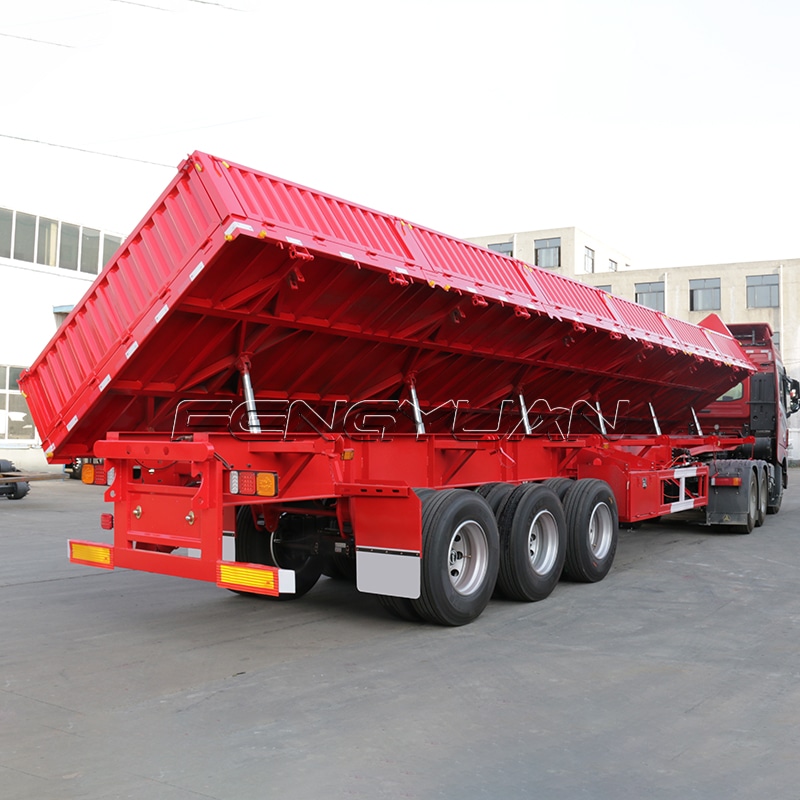

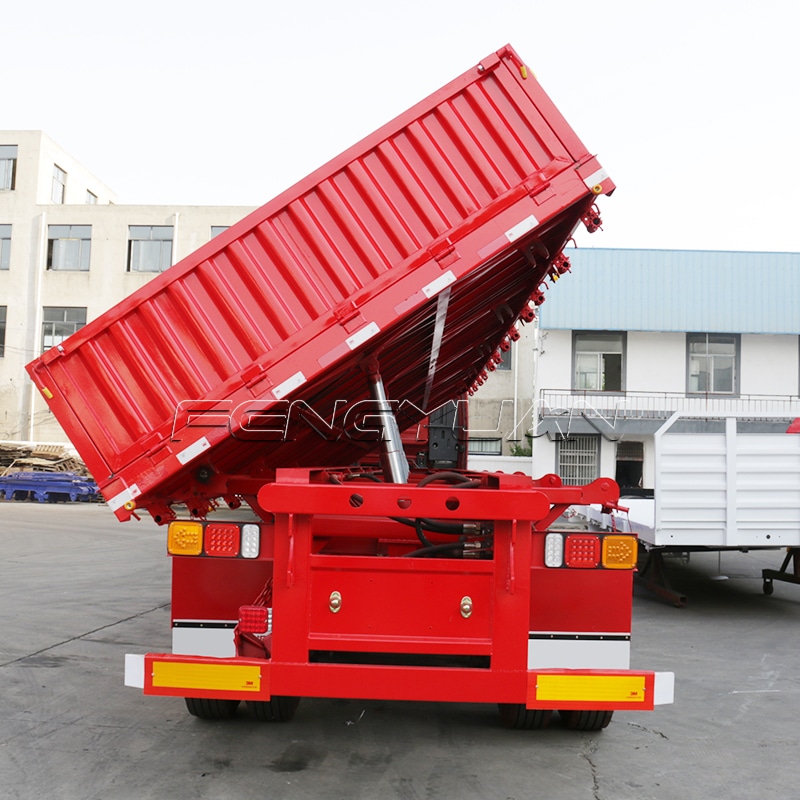

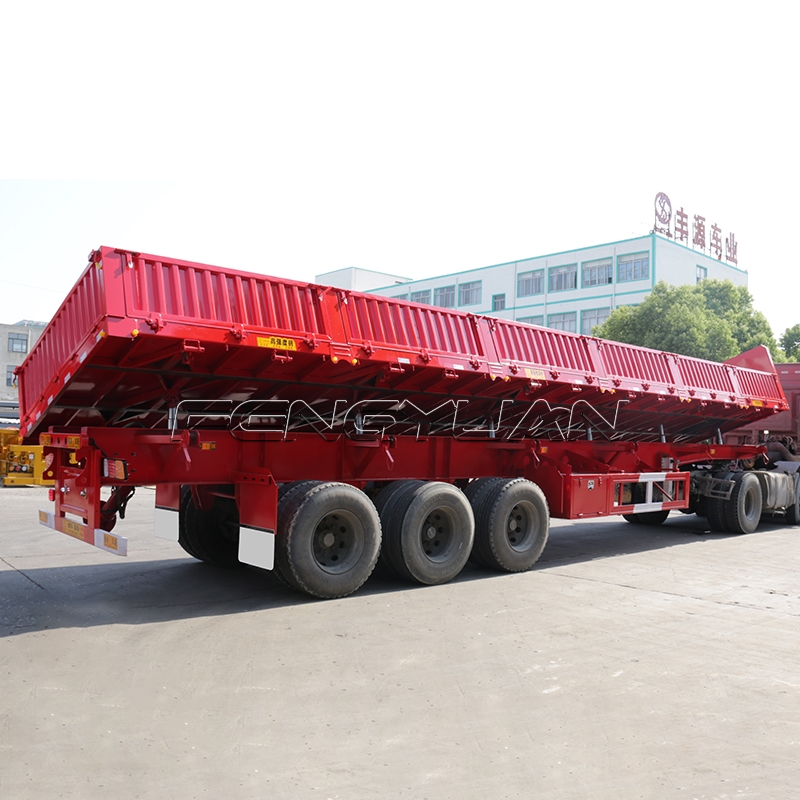

3 axles 30 35 45cbm square shape side dumping tipper semi trailer



     Dump truck trailer is the front end of the trailer connected to the rear end of the tractor. Part of the total weight of the trailer is borne by the tractor. It doesn’t have itself power, it is carried together with the truck head, and the end dump trailer is driven by the tractor.

  • Order(MOQ) :

    1 set
  • Payment :

    50% advance payment, balance before delivery
  • Product Origin :

    Bozhou, Anhui, China
  • Color :

    Customizable
  • Shipping Port :

    Qingdao, China
  • Lead Time :

    20-30 days
  • Weight :

    about 8 tons

     Hydraulic Dump truck trailer can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons tipper tractor trailer, 120 tons-180 tons tipper semi trailer of different tonnage according to the different cargoes. The common volumes are 30 cubic meters semi tipper trailer, 32 cubic meters semi tipper for sale, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters, etc.

stone sand transport tipper trailer

road construction dumping semi trailer

30 35 45cbm lateral dumping semi trailer



3 axle side dumping semi trailer



30 CBM 3 axles side dumping tipper semi trailer
Thickness

(I beam 500x140mm height)

Top Flange: 18mm*140mm, middle Flange: 10mm, Bottom Flange 18mm*140mm.

Material: Q345 and T700

Side board: 4 mm,bottom plate: 6 mm

Tare  Weight 8000 KG
Payload 40 - 60 Ton
Axle 3 units of 12T axle
Suspension Heavy Duty Mechanical Suspension
Floor 3mm checker plate
Leaf Spring A set of 3 axles mechanical suspension with a full set of leaf spring 13x90mm
Hydraulic Cylinder One set
King Pin Jost brand 2'' / 3.5'' Bolt-in King Pin
Landing Gear heavy duty 28 ton landing gear
Wheel Rim 9.0-22.5 wheel rim 13 pieces
Tire 12R22.5 tire with one spare tire.  13 pieces
Electrical System 24V standard electrical system with LED light
Braking System Dual-Line Air Brake System with good valve
Painting Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Application Transporting stone, sand, coal and other bulk cargo
Above Information are Standard Spec.
We could customize it according to your requirements.
