Tipper dump trailer are mainly used to transport earthwork, ores, construction materials and other bulk cargo. The hydraulic dumping system can realize self-unloading, which saves time and effort. This special design is for heavy vehicles, it ensures safety when unloading.
Order(MOQ) :
1 setPayment :
50% advance payment, balance before deliveryProduct Origin :
Bozhou, Anhui, ChinaColor :
CustomizableShipping Port :
Qingdao, ChinaLead Time :
20-30 daysWeight :
about 14 tons

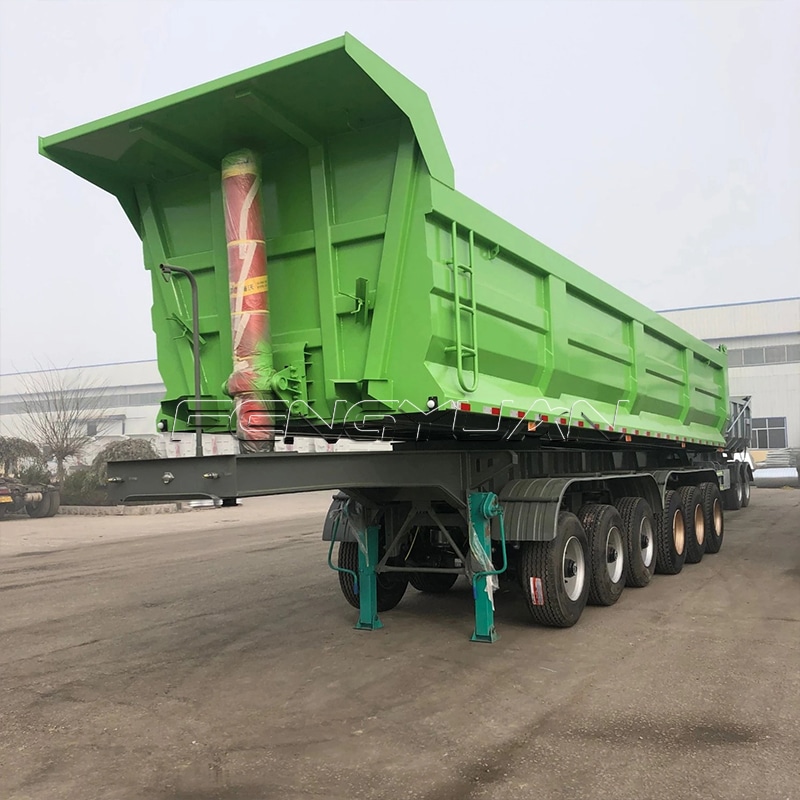

6 axles rear dumping tipper semi trailer |
|
Thickness |
(I beam 500x140mm height) Top Flange: 12mm*140mm, middle Flange:8mm, Bottom Flange 14mm*140mm. Material: Q345 and T700 side board: 6 mm, bottom plate: 8 mm |
Tare Weight |
14000 KG |
Payload |
100 - 120 Ton |
Axle |
6 units of 13T axle |
Suspension | Heavy Duty Mechanical Suspension |
Floor | 3mm checker plate |
Leaf Spring | A set of 6 axles mechanical suspension with a full set of leaf spring 13x90mm |
Hydraulic Cylinder |
One set |
King Pin | Jost brand 2'' / 3.5'' Bolt-in King Pin |
Landing Gear |
heavy duty 28 ton landing gear |
Wheel Rim | 9.0-22.5 wheel rim 25 pieces |
Tire | 12R22.5 tire with one spare tire. 25 pieces |
Electrical System |
24V standard electrical system with LED light |
Spare Tire |
One set of spare tire including a carrier |
Braking System |
Dual-Line Air Brake System with good valve |
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
Tool box |
One unit of tool box,one spare tire carrier with riser |
Application |
Transporting stone, sand, coal and other bulk cargo |
OEM/ODM |
Available |
Above Information are Standard Spec. |
6 axles Dump Trailer
dump box semi trailer
Characteristics:
1.Side member of upper camber structure: the unique overall camber structure of the longitudinal beam is adopted
to ensure lifetime downward bending-free of crossbeams and effective save fuel consumption under same bearing load.
2.Sophisticated process:The main parts of the vehicle are fabricated by advanced equipment.The longitudinal beams are welded by imported fully automatic
tracking submerged arc welding machine.The wheels and axles are assembled by assembly machine and the wheelbase is guaranteed by distance measuring equipment.
6 Axles Tipping Trailer
3.Suspension system:The suspension system keeps balanced load among various axles.The tie rod angle of system is reasonably designed to reduce the instant friction between tire and ground and the abnormal tire wear during the frequent operation.
4.Axles:The axles choose the quality products manufactured by professional factory,featuring high bearing capacity and difficult deformation.In addition,the optional anti-lock brake system(ABS) from domestic or foreign renowned brand can effectively eliminate the side slip and drifting of vehicle due to locking of wheels in event of emergency braking and improve the driving safety of the vehicle.
End Rear Dump trailer
5.Light of dead weight:The partial weight reduction is conducted in multiple portions on the premises of
guaranteeing the structural strength.While reducing the dead weight,the bearing capacity is effectively guaranteed.
6.Low bearing surface:The optional goose neck structure of beam effectively reduces the height of bearing surface,lowers the gravity center,and improves the transport safety.
